RELIABLE 4200SW WALKING FOOT SEWING MACHINE
RETIRED
(Shipped Pre-assembled on a pallet) Call for Door to Door Shipping Price Quotation
For heavier work, the most common type of sewing machine is the single needle, walking foot (compound feed) lockstitch machine. Top and bottom feed, and a higher foot lift allows the 4200SW to sew from medium to heavy weight fabric.
Reliable 4200SW Single Needle, Compound Feed – Walking Foot Sewing Machine. Includes High Quality Table (Assembled), SewQuiet Servomotor & FREE BONUS LED Uberlight!

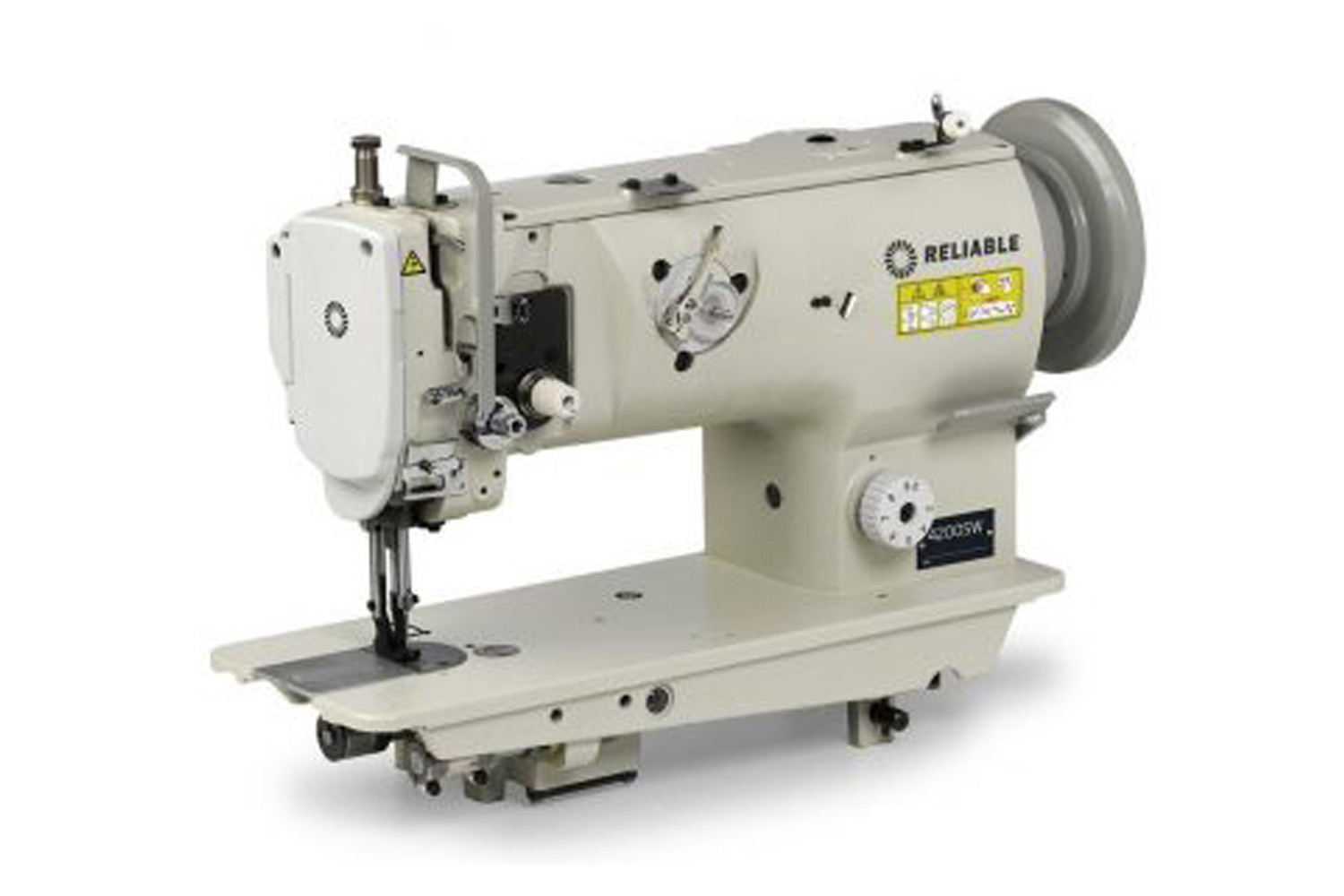

Reliable 4200SW – Single Needle, Compound Feed – Walking Foot Sewing Machine
SUPERIOR BUILD AND STITCH QUALITY IN A ECONOMICAL PACKAGE
For heavier work, the most common type of sewing machine is the single needle, walking foot (compound feed) lockstitch machine. Top and bottom feed, and a higher foot lift allows the 4200SW to sew from medium to heavy weight fabric.
QUALITY YOU CAN COUNT ON
For sewing leather, upholstery, canvas, and synthetics, the 4200SW with safety clutch offers the whole package. Low noise and vibration design, outstanding build quality and reliability and the industries #1 DC servomotor.
Best used for
✔ ♥ ➜ Leather, canvas and synthetic materials
✔ ♥ ➜ Upholstery, boat tops
✔ ♥ ➜ Tarpaulins, awnings, tents
AS AN ADDED BONUS, THE RELIABLE 4200 COMES FULLY ASSEMBLED. THAT MEANS NO WRESTLING WITH THE MACHINE HEAD AND MOTOR TRYING TO GET THEM MOUNTED! START BEING PRODUCTIVE RIGHT AWAY!
COMPLETE WITH MOTOR 120V, STAND AND LIGHT:
✔ ♥ ➜ 2,500-RPM high-speed operation
✔ ♥ ➜ Large capacity hook
✔ ♥ ➜ Large hand-wheel
✔ ♥ ➜ Extra high 19 mm foot lift (knee)
✔ ♥ ➜ Single row feed dog
✔ ♥ ➜ Manual lubrication
✔ ♥ ➜ Instruction / parts manual included
✔ ♥ ➜ Tool kit, drawer, thread stand included
✔ ♥ ➜ Individually tested and sewn-off before shipping
✔ ♥ ➜ 550W 12 COIL MOTOR MAXIMUM PIERCING POWER AT SLOW STICHING SPEEDS
✔ ♥ ➜ STITCH LENGTH 0 – 9 mm
✔ ♥ ➜ NEEDLE BAR STROKE 36 mm
✔ ♥ ➜ PRESSURE FOOT LIFT BY HAND 9 mm
✔ ♥ ➜ PRESSURE FOOT LIFT BY (knee) 19 mm
✔ ♥ ➜ NEEDLE SYSTEM # 135 x 17
✔ ♥ ➜ SAFETY CLUTCH Yes
✔ ♥ ➜ FEED DOG Single row
✔ ♥ ➜ HOOK TYPE Rotary – auto lubricated
✔ ♥ ➜ LUBRICATION Manual

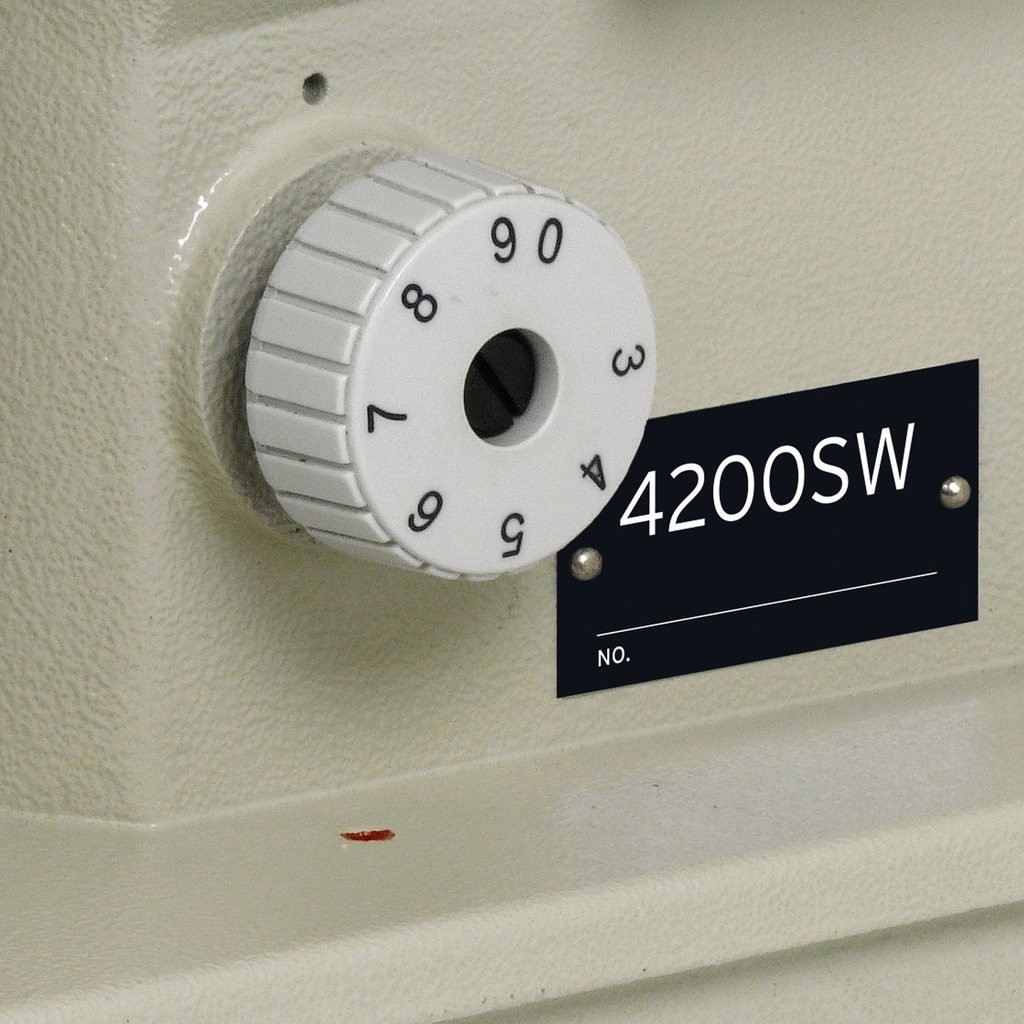

✔ ♥ ➜ STITCH DIAL REGULATOR Yes
✔ ♥ ➜ REVERSE LEVER Yes
✔ ♥ ➜ COUNTRY OF ORIGIN China
✔ ♥ ➜ MANUFACTURER’S WARRANTY Limited 1 year
Motor Specifications
✔ ♥ ➜ ELECTRICAL – 120V
✔ ♥ ➜ H.P. – 3/4
✔ ♥ ➜ POWER – 550W
✔ ♥ ➜ POWER CONSUMPTION – 4.5 amps
✔ ♥ ➜ SPEED CONTROL – Digital
✔ ♥ ➜ PULLEY TYPE – Aluminum
✔ ♥ ➜ PULLEY SIZE – 60mm
✔ ♥ ➜ ON-OFF SWITCH – Built-in
✔ ♥ ➜ ACCESSORIES – Treadle rod mounting hardware, belt guard
✔ ♥ ➜ DIMENSIONS – 9.75″ x 9″ x 6″
✔ ♥ ➜ WEIGHT – NET – 7.8 lb – 3.5 kg
✔ ♥ ➜ SHIPPING DIMENSIONS – 13.2″ x 11.4″ x 8″
✔ ♥ ➜ SHIPPING WEIGHT – 10 lb – 4.5 kg
✔ ♥ ➜ MANUFACTURER’S WARRANTY – Limited 1 year
SewQuiet 6000SM Brushless DC Servomotor INCLUDED
Reliable Industrial Sewing Machine 12 coil Motor technology
The SewQuiet 6000SM brushless DC servomotor is a modern-day marvel of ingenuity and technology, crafted and designed to exceed your expectations. This is the only servomotor to incorporate a full 12-coil (vs. 6 or 9) design. This provides unparalleled power and torque, the kind of torque that’s needed to work with the toughest materials. And for those looking to add a synchronizer to your motor, it’s now available as a low cost stand-alone option.
SewQuiet 6000SM Brushless DC Servomotor INCLUDED
The SewQuiet 6000SM represents the fourth generation of Reliable’s energy saving servomotor innovation. Precision step-by step stitching for detailed sewing, the ability to plug in a grounded light directly to the rear of the motor, CSA Certified electrical components and the total silence that gives the SewQuiet its name… the new 6000SM takes everything we’ve learned about motors over the past 60 years to new heights.
