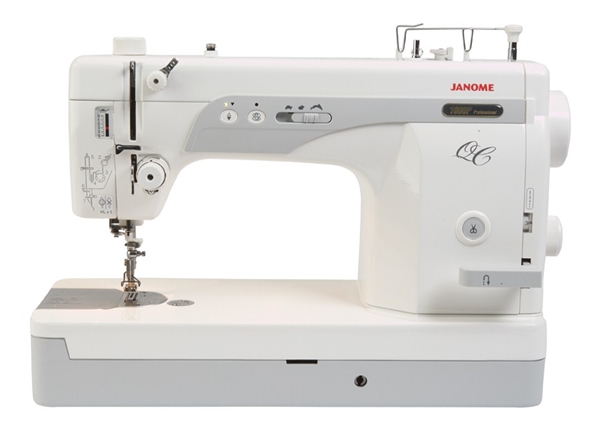

Janome 1600P-QC Industrial Machine

Janome 1600P-QCJanome 1600 P-QC

The lightning fast Janome 1600P-QC is a sewing machine built to quilt and sew. This intelligently designed Janome quilting and sewing machine gives you everything you need for fast and easy project completion. Reach speeds of up to 1,600 stitches per minute on this sewing machine model—that fastest machine on the market. The 1600P-QC boasts an impressively wide work area measuring nearly 9” x 6” for larger sewing projects. Find easy access in the side-loading bobbin, even from a quilt frame. Activate the automatic thread cutter and bobbin thread with a simple push of a button. The Janome 1600P-QC even comes with a comfortable, adjustable knee lift, so you can find the size that best fits you.

Do you love quilting and sewing? Looking for a machine to do both? Well, look no further! The Janome 1600P-QC is perfect for you.


The Janome 1600P-QC High Speed Straight Stitch sewing machine is built for speed. It is one of, if not, the fastest sewing machine models in its class, available on the market today. It is actually capable of performing 1,600 stitches per minute. Yes, you read right – one thousand, six hundred stitches! The 1600P-QC is also equipped with a high speed, industrial rotary hook, capable of giving you that perfect laser straight-stitch that everybody desires in competition quilting.


Speed is not the only feature that makes this machine stand out. It was also designed with comfort in mind. It has a significant area under the arm, making cumbersome jobs very easy. And its ergonomic knee lift allows for the adjustment most convenient to you. Comfort and speed for sewing and quilting all in one machine! You just can’t go wrong!



Janome 1600P-QC Sewing Space•   Sewing space

All projects are doable with this machine, especially with its spacious sewing area. Under the arm, to the right of the needle, there is an area measuring nine inches by six inches. That means more space, more comfort and more work done.


Janome 1600P-QC Threading•   Threading

The Janome 1600P-QC machine has a pre-tension thread regulator. This means that your thread is perfectly smooth as it enters the thread tension mechanism of the machine.

There is also an automatic thread cutter. With one press of a button, the thread cutter can quickly snip both the top and bobbin threads. Quick, easy and convenient!

  Janome 1600P-QC Rotary_Hook•   Rotary Hook

The machine has a side-loading, industrial rotary hook. So even as it reaches its maximum 1,600 stitches per minute, the Janome 1600P-QC produces exceptional, industrial quality results. This gives you a better straight-stitch then the average machine.


Janome 1600P-QC Knee_Lift•
Knee lift

You have a hands-free way of adjusting the presser foot with the knee lift. All you have to do is move your knee! Even quilting becomes so much easier with this feature.


Janome 1600P-QC Foot_Control•   Foot Pedal

 The liquid response foot pedal is another wonderful attribute. It gives you total control to accelerate or decelerate to your preferred stitching speed. It even works for just one stitch.


Janome 1600P-QC Needle_Up-Down•   Needle Movement

There’s a programmable needle up/down button. Therefore, you can simply and easily control the position of the needle, during your projects.


Janome 1600P-QC Speed_Control

•   Convenience

The Janome 1600P-QC machine is a portable industrial model. But, unlike most industrial models, convenient, easy to use features like you are used to own a regular domestic machine.


Professional Features of the Janome 1600P:

•   Needle threader
•   Simultaneous bobbin winding while sewing
•   Industrial thread take-up lever
•   Print thread diagram on machine
•   Printed bobbin winding diagram on machine
•   Dual sewing lights
•   No oil holes on sewing bed
•   Sealed bearings on shafts
•   Heavy-duty presser foot pressure
•   Visible pressure gauge
•   HL needle


Full Features List:

•   6mm maximum stitch length
•   maximum speed of 1,600 stitches per minute
•   low speeds of 50 to 70 stitches per minute



•   Free arm
•   Flat bed
•   5 HL needles, size 9 – 16
•   Programmable needle up/down
•   Built-in needle threader
•   Printed thread diagram on machine
•   Pre-tension threading
•   Manual thread tension control
•   Automatic thread cutter
•   Side loading, industrial rotary hook
•   Industrial thread take-up lever
•   Hinge type presser foot with shank
•   Extra-high presser foot lift lever: 6 mm (extra lift: 12.7 mm)
•   Heavy-duty presser foot pressure : 5kg (10.5 lbs)
•   Liquid response foot control
•   Variable speed control
•   Speed control slider
•   Dial control for stretch length
•   Vertical fixed spool pin
•   Simultaneous bobbin winding
•   Independent bobbin winder motor
•   Printed bobbin winding diagram on machine
•   Knee lifter; adjustable to 8mm
•   Electronic foot controller
•   Additional sensor to prevent machine from starting with presser foot in up position
•   Pressure indicator window
•   Metal attachment setting plate
•   Darning plate for free motion quilting
•   Sealed bearings on shafts
•   No oil holes on sewing bed
•   2 Krypton lamps
•   Folding carrying handle
•   Low sound due to no external motor


 Machine specifications:

•   Machine dimensions:
Machine size-W419.6″ x H12.7″ x D7″
•   Arm space is 9″ x 5.5″
•   Painted aluminum body


Standard Accessories:

•   Organ Needle System
•   1 HL x 5-16
•   1 HL x 5-14
•   2 HL x 5-11
•   1 HL x 5-9
•   Bobbin
•   Hemmer foot
•   Net
•   Spool cap
•   Spool holder
•   Knee lifter
•   Screwdriver: small; large
•   Lint brush
•   Cloth guide with Screw
•   Accessory box
•   Oil
•   Instruction book
